Surface Treatment
Plating
Plating is a surface treatment technology in which the material surface is coated with a thin metal film. We electroplate the material with metal. We satisfy clients' requests with chrome plating, copper plating, nickel plating, or composite plating.
Iron making field
Transportation roller for iron making
Transportation roller used on the sheet steel manufacturing line. Its abrasion resistance is improved through hard chrome plating. The finished surface can be a mirror surface or rough surface as the client desires.
- Outline dimensions: φ800 mm * 1,900 mm * 2,470 mm long
Internal perimeter of cylinder tube
Hard chrome plating processing for the internal perimeter. We can polish the surface through honing after plating.

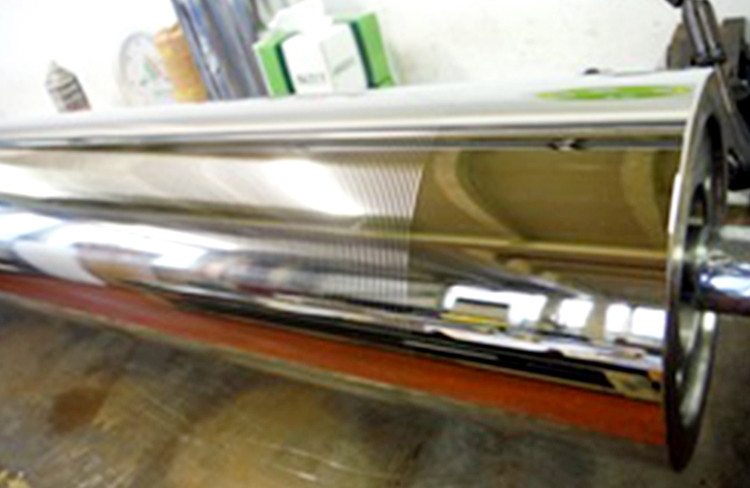

Roller for printing press
Roller for printing press
Roller used in sheet-fed printing presses. The surface is roughened to some extent to evenly retain liquid on the roller surface.
- Outline dimensions: φ85 mm * 1,000 mm long

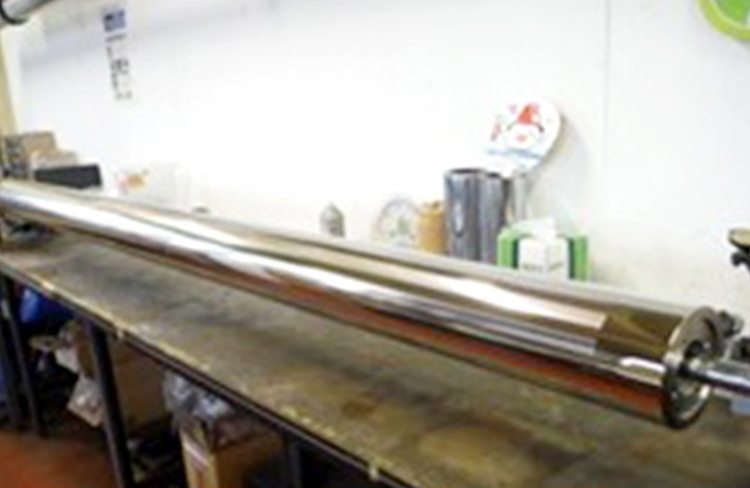

Long CFRP plated roller
Roller for transporting light objects. Made of CFRP (carbon fiber reinforced plastic), the roller is large but so lightweight that you can carry it by hand.
- Outline dimensions: φ150 mm * 3,000 mm long
